TERRA-HAMMER TR 565

steel pipes up to ø 3000 mm (ø 120")

Allgemeine Infos

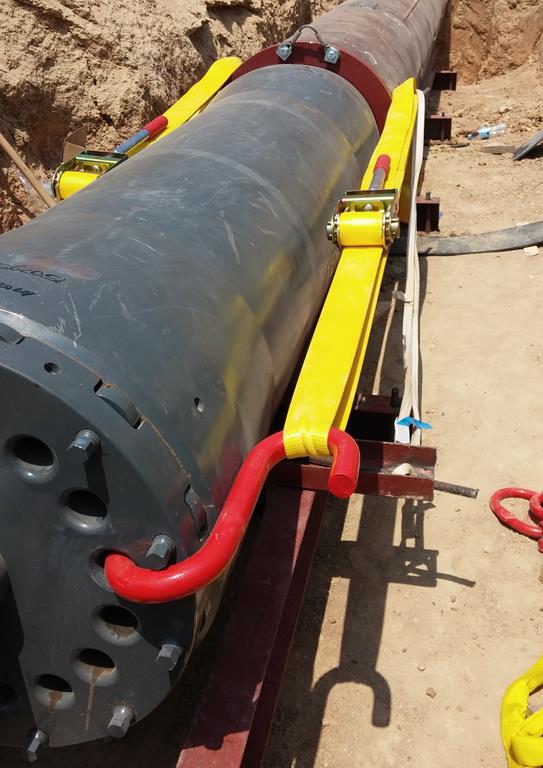

    The TR 565 is one of the strongest machine in its class. With a length of 2.30 m the ram is 1 m shorter than comparable rams. The machine only needs one compressor with an air requirement of 34 m3/min.


  1. For steel pipe diameter: 400 – 3000 mm (15" - 120")
  2. Ramming force: 2400 tonnes (2640 US tonnes)
  3. Air requirement: 34 m3/min (1200 cfm)
  4. Length: 2.30 m (7.5 ft)

Allgemeine Infos
Allgemeine Infos




Technical Data

Technical Data

T = TERRA-HAMMER with fused on earth displacement head
TU = TERRA-HAMMER with interchangeable head adapters
TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining)
S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose)
F = TERRA-HAMMER Version F, with remote control reverse
S/F = TERRA-HAMMER, available in Version S and Version F
K = TERRA-HAMMER Version K, not glued, can be serviced without heating
SK = TERRA-HAMMER Version S + Version K
KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter


TERRA AG se reserva el derecho de cambios técnicos en cualquier momento.
Diámetro
565 mm
22"
Tubo de acero
400 - 3'000 mm
16" - 120"
Largo
2.3 m
90"
Peso
2'535 kg
5.600 lbs
Fuerza de impacto
2'400 to
2.650 US tons
Frecuencia
195 /min
195 /min
Consumo de aire
34 m3/min
1.200 cfm
Impresión
6-7 bar
85-100 psi


 arriba
