TERRA-HAMMER (traceable)

Traceable Piercing Tools (ø 55 - 210 mm)

The first proven front locating system for piercing tools with KOK-LD adapters

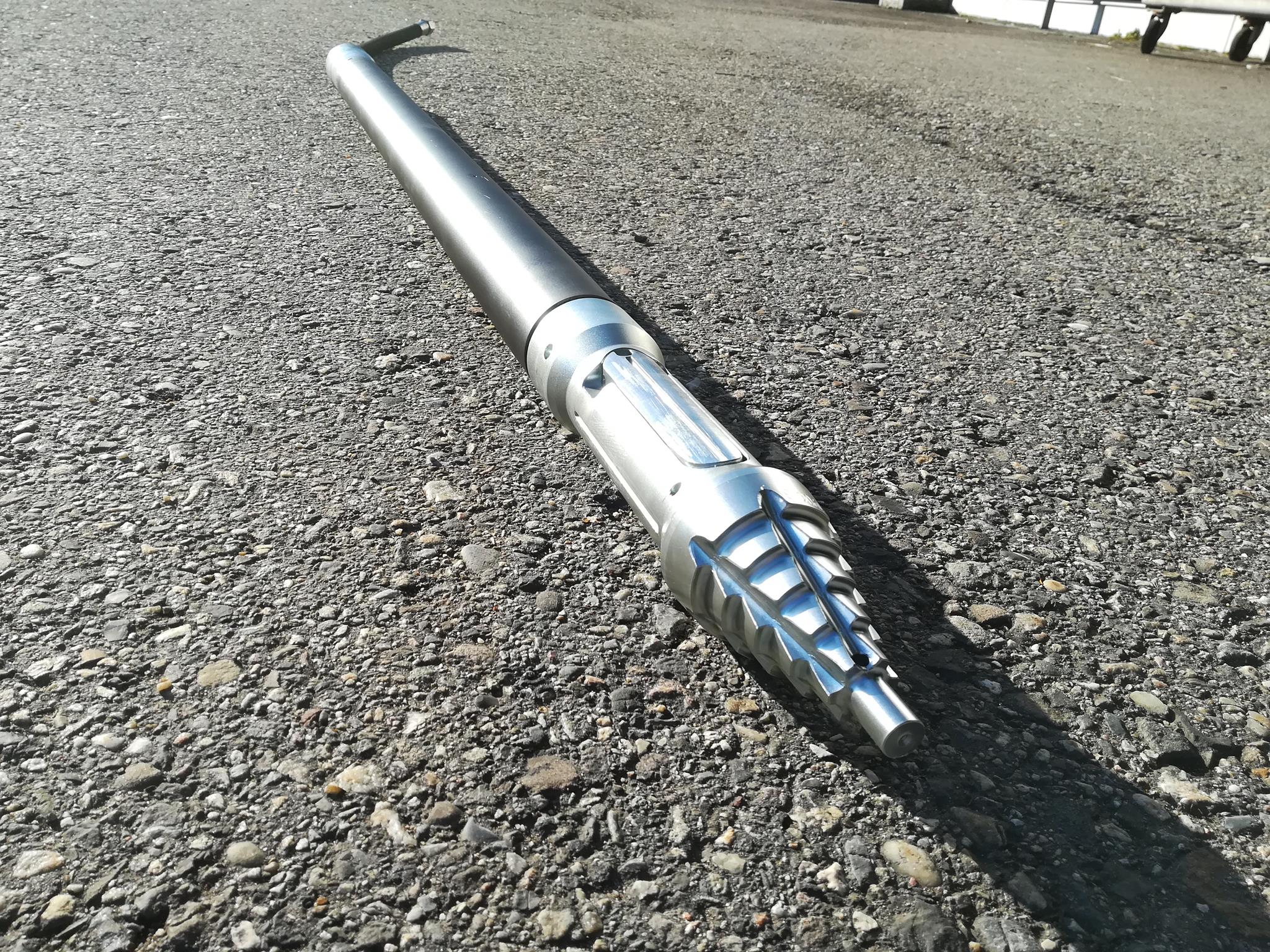

    The traceable head-adapters KOK‐LD for the TU-models carrie an electronic sonde protected by shock absorbers. (LD = long distance)

    This allows precise tracking of the mole's head.

    Need to locate your piercing tool? No problem! With the interchangeable head adapter you can convert your current mole into a traceable mole on the jobsite. Keep track of the bore path!

The first proven front locating system for piercing tools with KOK-LD adapters
The first proven front locating system for piercing tools with KOK-LD adapters


Traceable Head Adapter Accessories

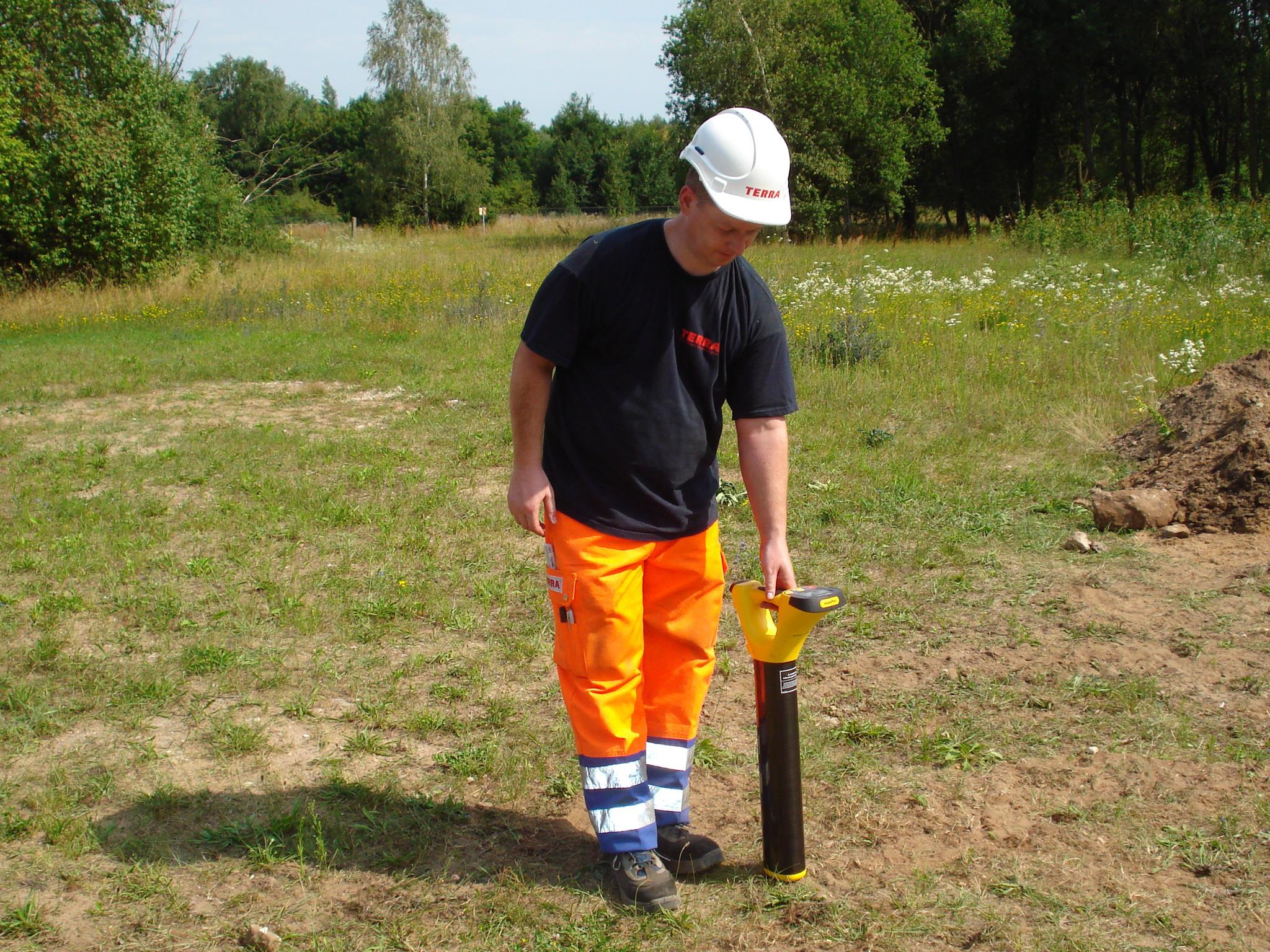

    The locating equipment for the traceable TERRA-HAMMER comprises a sonde contained in the KOK-LD head adapter, used in conjunction with a hand-held radio locator with LCD-display to accurately indicate the position and depth of the tool.

    An additional transmitter allows pipe and cable locating. The TERRA-HAMMER TU 080plus SK and larger machines can be easily equipped with traceable KOK-LD adapters.


Traceable Head Adapter Accessories
Traceable Head Adapter Accessories




Technical Data

TERRA-HAMMER Diameter ø mm Length m Weight kg Frequency 1/min Air consum. m3/min Pressure bar Expanders ø mm

T = TERRA-HAMMER with fused on earth displacement head
TU = TERRA-HAMMER with interchangeable head adapters
TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining)
S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose)
F = TERRA-HAMMER Version F, with remote control reverse
F2 = TERRA-HAMMER Version F2, with remote control reverse, with integrated control hose
S/F = TERRA-HAMMER, available in Version S and Version F
K = TERRA-HAMMER Version K, not glued, can be serviced without heating
SK = TERRA-HAMMER Version S + Version K
KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter


TERRA AG se reserva el derecho de cambios técnicos en cualquier momento.
TU 055 R (ortbar)
55 mm
1.25 m
16 kg
520 /min
0.9 m3/min
6-7 bar
-
TU 068 SK (ortbar)
68 mm
1.51 m
33 kg
420 /min
1.3 m3/min
6-7 bar
-
TU 080 SK (ortbar)
80 mm
1.51 m
42 kg
395 /min
1.8 m3/min
6-7 bar
-
TU 090 SK (ortbar)
90 mm
1.44 m
53 kg
395 /min
1.8 m3/min
6-7 bar
-
TU 105 S/F (ortbar)
105 mm
1.50 m
71 kg
360 /min
2.4 m3/min
6-7 bar
-
TU 135 Twin (ortbar)
135 mm
1.80 m
138 kg
350 /min
2.4 m3/min
6-7 bar
-
TU 155 F (ortbar)
155 mm
1.94 m
182 kg
285 /min
3.8 m3/min
6-7 bar
-
TU 190 F (ortbar)
190 mm
1.97 m
284 kg
275 /min
5.0 m3/min
6-7 bar
-
TU 210 F (ortbar)
210 mm
1.98 m
343 kg
275 /min
5.0 m3/min
6-7 bar
-



Technical Data, us

TERRA-HAMMER Diameter ø inch Length inch Weight lbs Frequency b/min Air consum. cfm Pressure psi Expanders ø inch

T = TERRA-HAMMER with fused on earth displacement head
TU = TERRA-HAMMER with interchangeable head adapters
TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining)
S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose)
F = TERRA-HAMMER Version F, with remote control reverse
F2 = TERRA-HAMMER Version F2, with remote control reverse, with integrated control hose
S/F = TERRA-HAMMER, available in Version S and Version F
K = TERRA-HAMMER Version K, not glued, can be serviced without heating
SK = TERRA-HAMMER Version S + Version K
KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter


TERRA AG se reserva el derecho de cambios técnicos en cualquier momento.
TU 055 R (traceable)
2.2"
49"
35 lbs
520 /min
31 cfm
100 psi
-
TU 068 SK (traceable)
2.7"
60"
73 lbs
420 /min
45 cfm
100 psi
-
TU 080 SK (traceable)
3.2"
60"
92 lbs
395 /min
63 cfm
100 psi
-
TU 090 SK (traceable)
3.5"
57"
116 lbs
395 /min
63 cfm
100 psi
-
TU 105 S/F (traceable)
4.1"
59"
156 lbs
360 /min
84 cfm
100 psi
-
TU 135 Twin (traceable)
5.3"
71"
304 lbs
350 /min
84 cfm
100 psi
-
TU 155 F (traceable)
6.1"
76"
401 lbs
285 /min
135 cfm
100 psi
-
TU 190 F (traceable)
7.5"
78"
626 kg
275 /min
175 cfm
100 psi
-
TU 210 F (traceable)
8.3"
78"
762 lbs
275 /min
175 cfm
100 psi
-
