| TERRA-HAMMER | Diameter ø mm | Length m | Weight kg | Frequency 1/min | Air consum. m3/min | Pressure bar | Expanders ø mm |
|---|---|---|---|---|---|---|---|
|
T = TERRA-HAMMER with fused on earth displacement head TU = TERRA-HAMMER with interchangeable head adapters TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining) S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose) F = TERRA-HAMMER Version F, with remote control reverse F2 = TERRA-HAMMER Version F2, with remote control reverse, with integrated control hose S/F = TERRA-HAMMER, available in Version S and Version F K = TERRA-HAMMER Version K, not glued, can be serviced without heating SK = TERRA-HAMMER Version S + Version K KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter TERRA AG se reserva el derecho de cambios técnicos en cualquier momento. |
|||||||

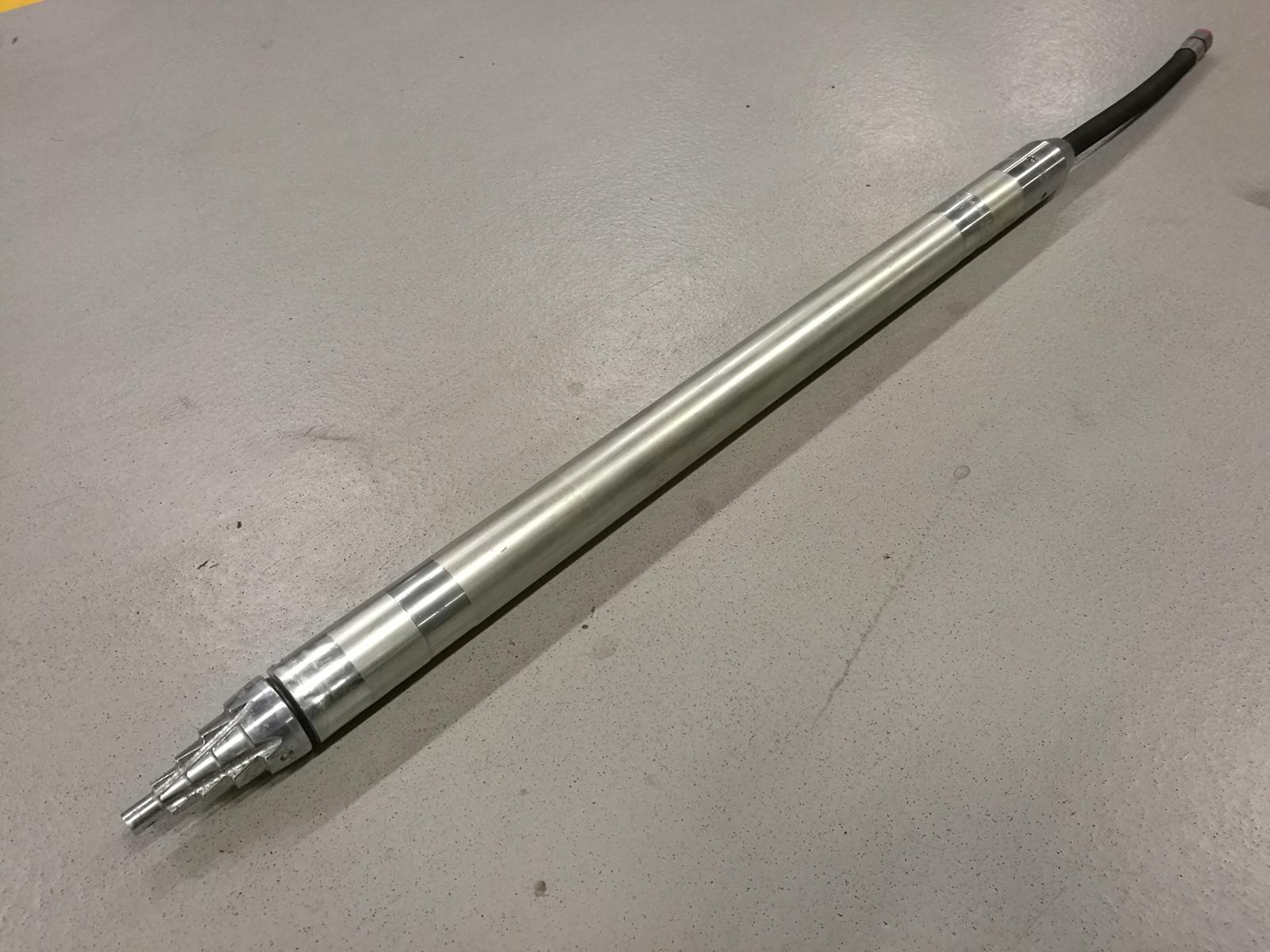

| TU 045 R (mini) |
45 mm
|
1.00 m
|
9 kg
|
475 /min
|
0.6 m3/min
|
6-7 bar
|
-
|
| TU 055 R (mini) |
55 mm
|
1.05 m
|
13 kg
|
520 /min
|
0.9 m3/min
|
6-7 bar
|
-
|
| TU 068 SK (mini) |
68 mm
|
0.98 m
|
20 kg
|
480 /min
|
1.1 m3/min
|
6-7 bar
|
-
|
| TU 080 SK (mini) |
80 mm
|
0.91 m
|
24 kg
|
550 /min
|
1.8 m3/min
|
6-7 bar
|
-
|
| TU 090 SK (mini) |
90 mm
|
0.91 m
|
38 kg
|
550 /min
|
1.8 m3/min
|
6-7 bar
|
-
|
| T 105 S (mini) |
105 mm
|
1.08 m
|
44 kg
|
540 /min
|
2.4 m3/min
|
6-7 bar
|
-
|
