Mixing Station MS 1200

4000 - 8000 ltr

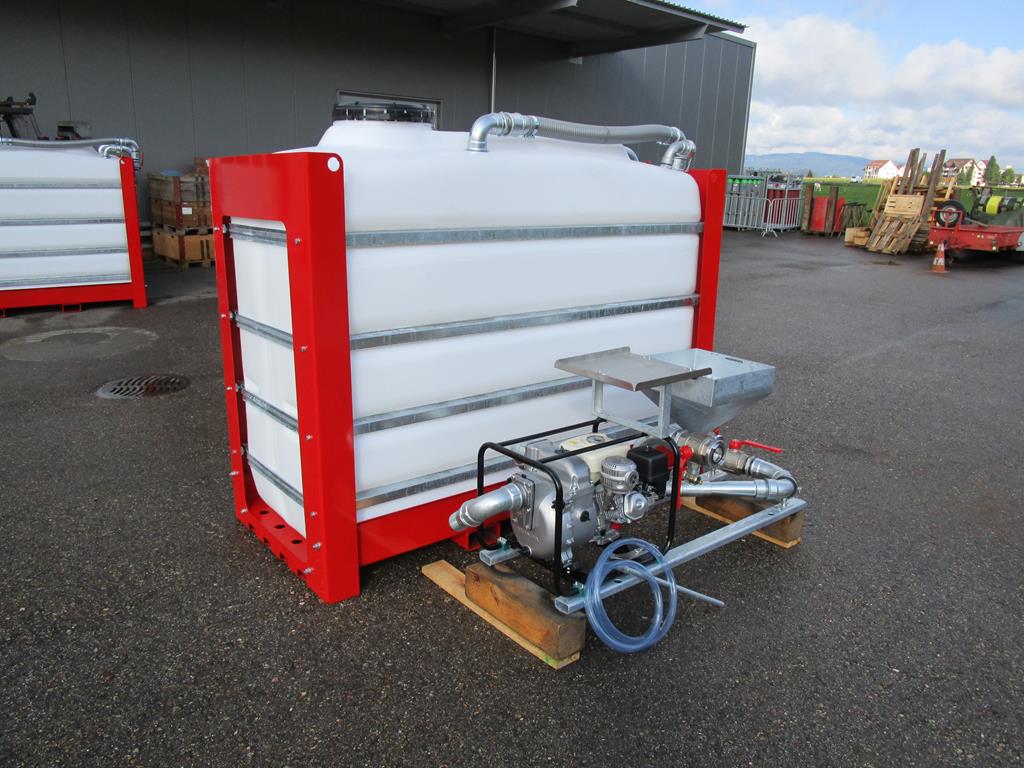

MS 1200 - Higher performance and faster yield times

    With our innovative MS 1200 fluid mixing system TERRA has set the standards for efficiency in the horizontal directional drilling industry. It was designed to provide highest performance and efficiency at low costs. Powered by a proven HONDA mixing pump it offers up to 1200 ltr/min (320 gpm) of drilling fluid. A second feeding pump offers a flow rate to your TERRA-JET of 700 ltr/min. It is equipped with a 4000 ltr (1050 gal) tank for maximum fluid capacity. Optionally TERRA even overs a second tank for higher mud capacity. The MS 1200 supports horizontal directional drilling systems of all sizes.

MS 1200 - Higher performance and faster yield times
MS 1200 - Higher performance and faster yield times

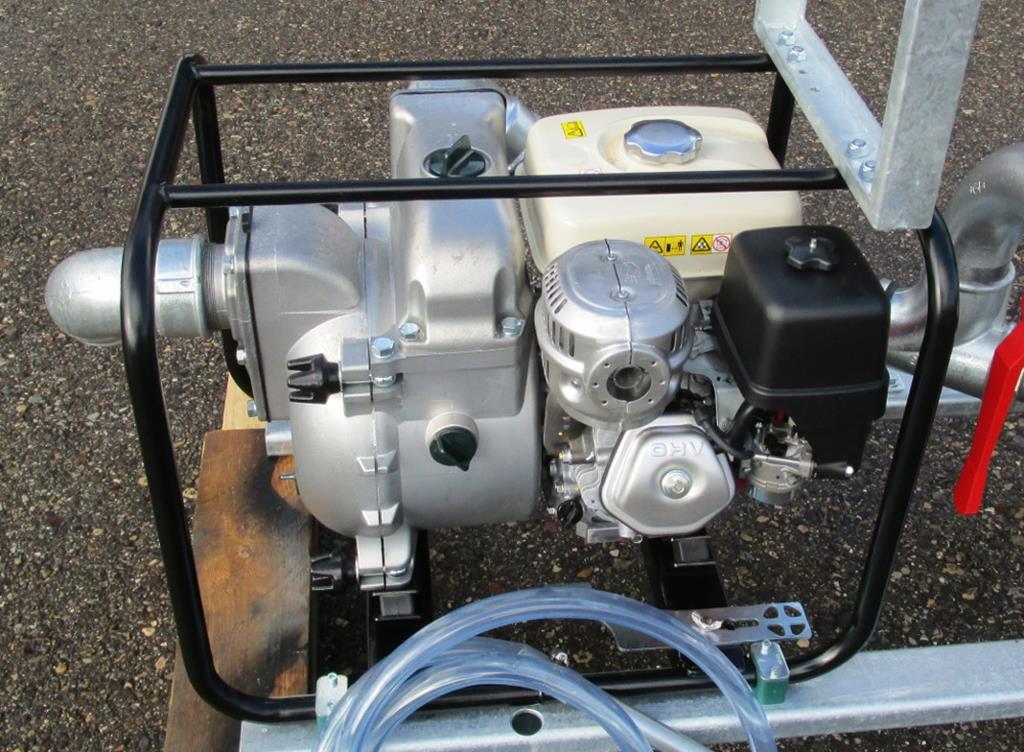

HONDA pump with 1200 ltr/min (320 gpm)

    The trash pump with HONDA petrol engine pumps the water with 1200 ltr/min (320 gpm) and mixes the Bentonit into the drilling fluid. A second bentonite feeding pump with a flow rate of 700 ltr/min pumps the bentonite to your TERRA-JET. The exit of the mixing station has a Storz coupling KA 66 mm (2.6") for a firehose. This firehose to the TERRA-JET can be up to 60 m (200 ft) long.

HONDA pump with 1200 ltr/min (320 gpm)
HONDA pump with 1200 ltr/min (320 gpm)

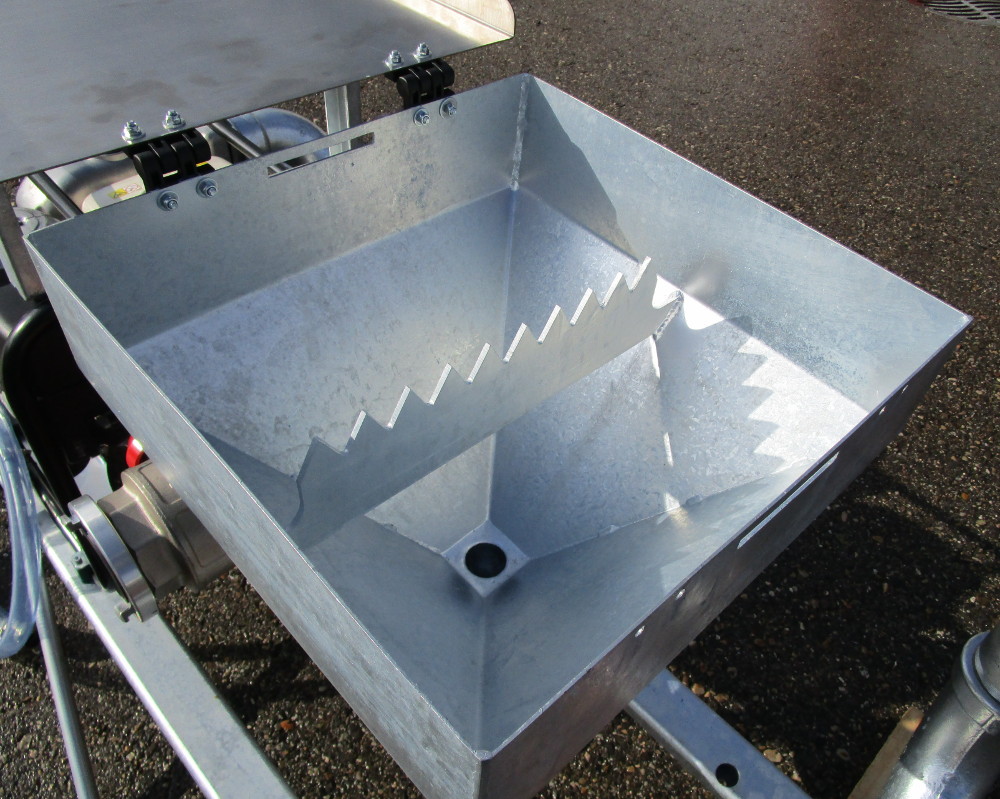

Funnel with underpressure (Venturi system)

    The big funnel with cutting knife makes your HDD live easier on the jobsite. The cutting knife in the funnel opens the bentonite bags. A 25 kg (55 lbs) bag of bentonite can be placed besides the funnel. Due to the venturi pipe there is a underpressure in the whole system. The bentonite is sucked into the mixing unit which provides a reliable mixing.

Funnel with underpressure (Venturi system)
Funnel with underpressure (Venturi system)

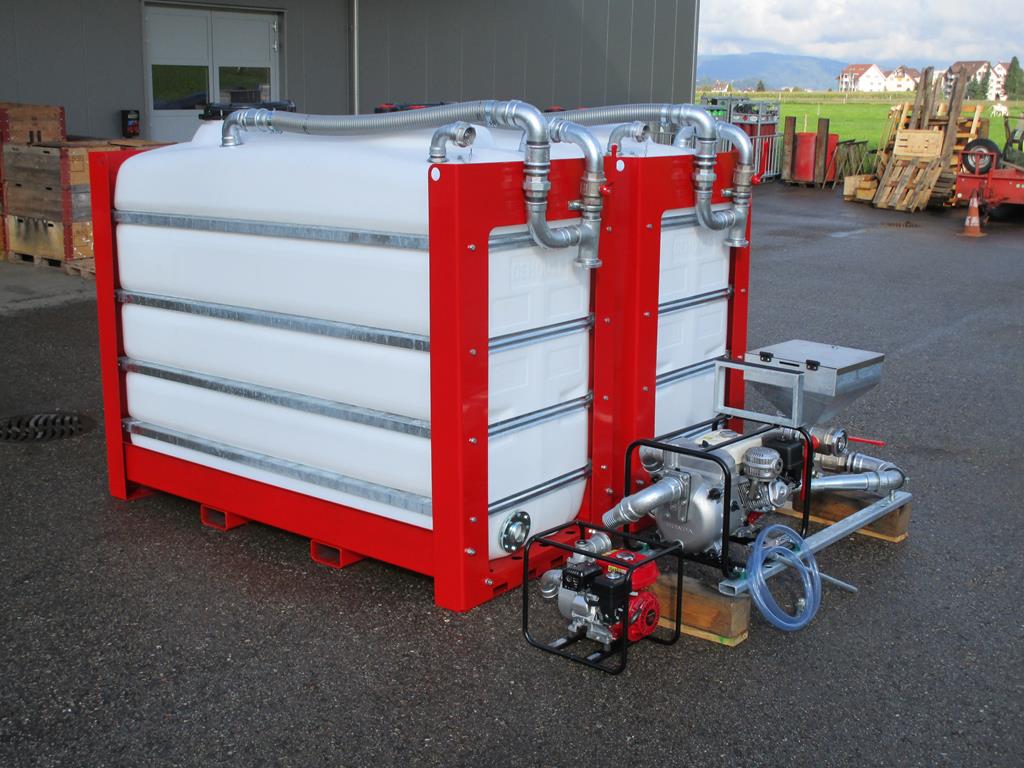

Mixing tanks range from 4000 ltr (1050 gal) to 8000 ltr (2110 gal)

    The MS 1200 is standardly equipped with two 4000 ltr (1050 gal) tanks. Both tanks have integrated a special bottom flushing system. It prevents that the bentonite settles down at the bottom. It is fed from the top and can be opened with this regulation valve.

Mixing tanks range from 4000 ltr (1050 gal) to 8000 ltr (2110 gal)
Mixing tanks range from 4000 ltr (1050 gal) to 8000 ltr (2110 gal)

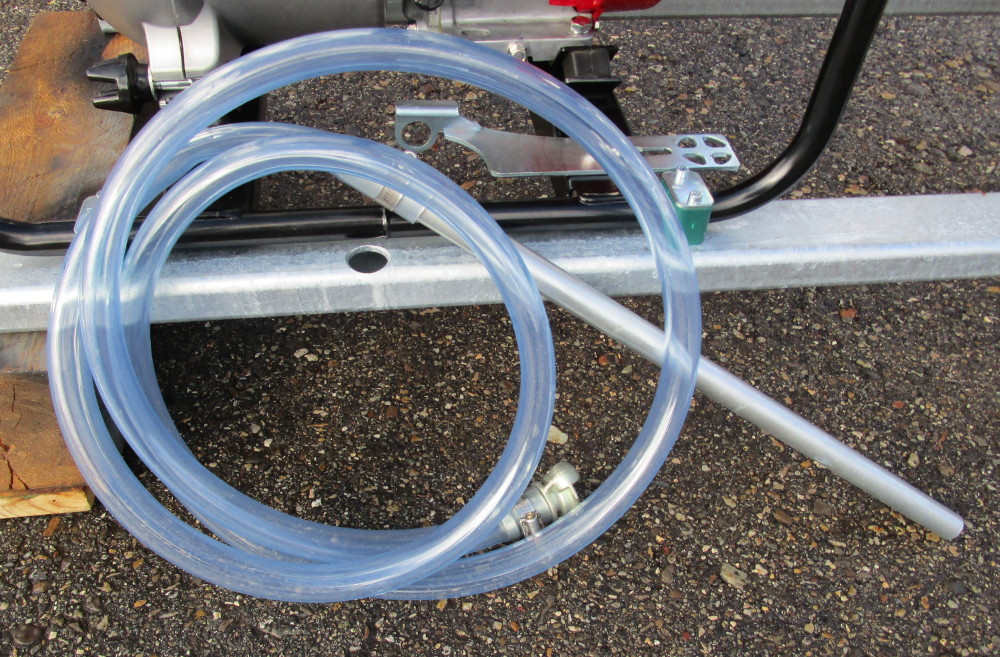

Cleaning

    Next to the dunnel is a cleaning pipe with hose. It cleans the injector if it gets stuck.

Cleaning
Cleaning



Technical Specifications

Technical Specifications



TERRA AG se reserva el derecho de cambios técnicos en cualquier momento.
Power, mixing pump
8.5 PS (6.3 kW)
8.5 HP (6.3 kW)
Power, feeding pump
5.3 PS (4.0 kW)
5.3 HP (4.0 kW)
Fuel
Benzin
Petrol
Pump discharge rate
1200 l/min
320 gpm
700 l/min
185 gpm
Distance to boring unit
60 m
200 ft
Fluid pressure
25 m (2.5 bar)
360 psi
Typical mixing time per 1'000 ltr of water
5 min
5 min
Mixing hopper capacity
25 kg
55 lbs
Drilling fluid tank capacity
4000 / 8000 l
1030 / 2060 gal
Dimensions with one tank L x W x H
2460 x 1900 x 2050 mm
97 x 75 x 80 in
Dimensions with two tanks L x W x H
2460 x 3000 x 2050 mm
97 x 120 x 80 in
Weight with one tank (empty)
720 kg
1590 lbs
Weight with two tanks (empty)
1240 kg
2730 lbs

Sus beneficios

Service-friendly:

Simple construction provides highest reliability

All on board:

including complete mixing system

One-man-operation:

Saves you time and money
